NEGATIVE-SIDE Concrete Leak Repair SYSTEM

CONQOR IG200 – Negative-side injectable acrylic resin

Inject Behind Concrete Repair Icon
CONQOR IG200 is a negative-side injectable hydrophilic resin for sealing wet and leaking concrete

CONQOR IG200 concrete leak repair system is a cost-effective and environmentally safe solution to stopping water infiltration in below-grade concrete structures.

CONQOR IG200 is a water-based, three-part hydrophilic acrylic resin that is injected through concrete drill holes into the “NEGATIVE SIDE” substrate soil or void, and forms a waterproof hydrogel to seal off cracks, voids, and fissures, including expansion and construction joints. Due to it’s low viscosity, it can penetrate anywhere that water has access and create a resilient, highly elastomeric waterproof seal. Its hydrophilic characteristic is advantageous when sealing wet and leaking concrete.

TYPICAL APPLICATIONS INCLUDE:

  • Concrete Leak Repair – Any below-ground or water-retaining concrete structure where there is permanent water pressure – tunnels, dam walls, underground car parks, water tanks, swimming pools, retaining walls, septic tanks, lift pits, curtain walls etc.
  • Preventing water migration – through concrete cracks, expansion joints, construction joints, control joints and cold joints.
  • Sealing cracks in concrete – to prevent moisture, chemical or solid contaminant ingress and the resultant deleterious issues.
Inject Behind Concrete Repair Icon

When should CONQOR IG200 be used?

Due to low viscosity, CONQOR IG200 can penetrate anywhere that water has access and create a resilient, highly elastomeric waterproof seal. Its hydrophilic characteristic isadvantageous when sealing wet and leaking concrete.

CONQOR IG200

PROTECTS THE STRUCTURE

  • Extremely low viscosity – water-like viscosity maximises penetration of cracks and fissures over 0.1mm.
  • Withstands distortion and movement – it retains its remarkable elasticity, adhesion and flexibility
  • Low-pressure installation, minimising risk to the structure.
  • Contains rust inhibitors that coat the steel rebar within the concrete and permanently stop oxidisation and further corrosion.
  • Resistant to mould, fungi, bacteria, and most acids and alkalis.

CONQOR IG200

EFFICIENT APPLICATION

  • No need for dry conditions – due to the fact that CONQOR IG200 concrete leak repair system is hydrophilic, water is absorbed not displaced by the gel. When in contact with water the gel will swell and hence maintain a condition of maximum expansion.
  • Variable set time from two seconds to two hours, allowing a wide variety of applications under varying conditions.
  • Can be applied underwater.
  • Patented injection system – efficient and effective application.

CONQOR IG200

SAFE

  • Non-toxic, non-flammable, solvent free, and low odour.
  • Suitable in salt water, fresh water, wastewater, or permanently damp environments.
  • Non corrosive in gel form.
  • Insoluble in water or petroleum-based solvents, once in gel form.
  • Thermal resistance from -30ºC to 70ºC.

CONQOR IG200

PROTECTS THE STRUCTURE

  • Extremely low viscosity – water-like viscosity maximises penetration of cracks and fissures over 0.1mm.
  • Withstands distortion and movement – it retains its remarkable elasticity, adhesion and flexibility
  • Low-pressure installation, minimising risk to the structure.
  • Contains rust inhibitors that coat the steel rebar within the concrete and permanently stop oxidisation and further corrosion.
  • Resistant to mould, fungi, bacteria, and most acids and alkalis.

CONQOR IG200

EFFICIENT APPLICATION

  • No need for dry conditions – due to the fact that CONQOR IG200 concrete leak repair system is hydrophilic, water is absorbed not displaced by the gel. When in contact with water the gel will swell and hence maintain a condition of maximum expansion.
  • Variable set time from two seconds to two hours, allowing a wide variety of applications under varying conditions.
  • Can be applied underwater.
  • Patented injection system – efficient and effective application.

CONQOR IG200

SAFE

  • Non-toxic, non-flammable, solvent free, and low odour.
  • Suitable in salt water, fresh water, wastewater, or permanently damp environments.
  • Non corrosive in gel form.
  • Insoluble in water or petroleum-based solvents, once in gel form.
  • Thermal resistance from -30ºC to 70ºC.

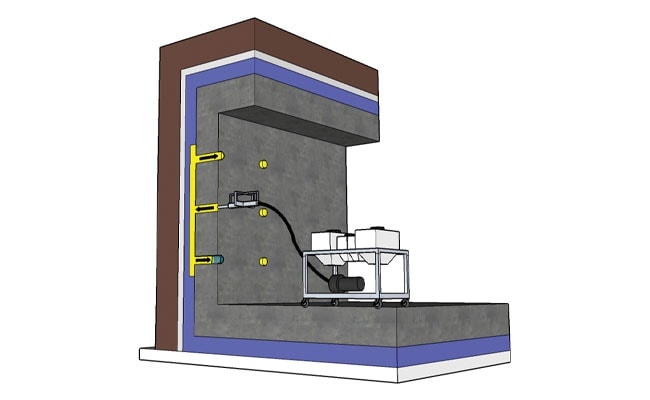

How CONQOR IG200 works.

CONQOR IG200 injection forms a hydrogel on the “negative side” in soil/void and seals cracks and joints from “behind the wall” to stop moisture ingress. CONQOR IG200 is NOT a traditional epoxy injection system that fills the crack from the visible side.   By implementing its technology from the negative side of the foundation, all costly and disruptive exterior excavations common with traditional waterproofing applications are avoided.

NZ Building Product Information Requirements.

TECHNICAL DATA BUILDING PRODUCT INFORMATION: 8/2023.1

Product Identifier:

50/IG200/P1

Relevant New Zealand Building Code Clauses:

E2 External Moisture

How This Product Contributes To Compliance:

CONQOR IG200 is a remediation product to rectify waterproofing issues, where external moisture is penetrating fissures in concrete. This product is not subject to warning or ban under section 26 of the Building Act 2004.

CONQOR IG200 Details.

Technical data is available on our Downloads page
