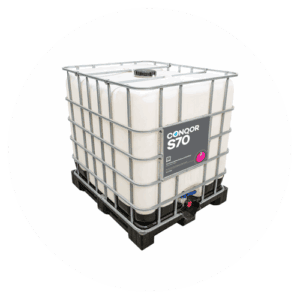

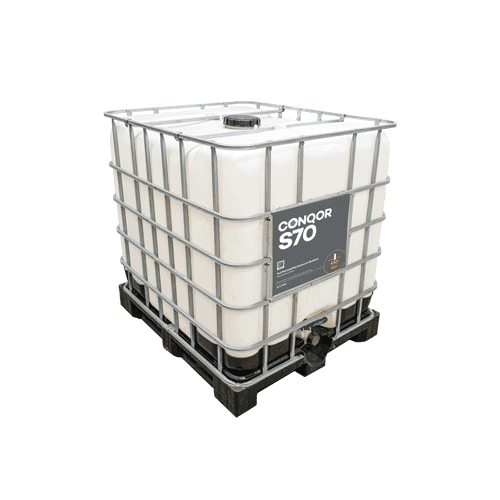

CONQOR S70 | INJECTION
Helping make unstable ground buildable.
Soil Permeability Reducer & Stabiliser for Construction Sites.
- Soil permeability reducer
- Soil stabiliser
- Safe for aquifers
CONQOR S70 | INJECTION
Advanced ground improvement solution for reducing soil permeability & increasing stability.
Control groundwater. Stabilise difficult ground. Reduce construction risk.
CONQOR S70, a permeation grout, helps project teams significantly reduce soil or sand permeability and increase ground-bearing strength without harming the underlying aquifer.
When mixed with its activator, CONQOR S70 undergoes a controlled gelation process, forming a resilient colloidal gel that stabilises the ground and reduces water movement. Two grades of activator are available: one polymer-modified for flexibility, and one for a harder set.
CONQOR S70 is highly effective for both temporary and permanent ground improvement, including ground freezing in problematic soils. It is a proven solution for reducing soil permeability, controlling groundwater, and isolating contaminants. Stop water and sand ingress caused by loose and permeable ground conditions.
CONQOR S70 | INJECTION
Who it helps.
Ideal Solution for
Geotechnical engineers.
CONQOR S70 is highly effective for both temporary and permanent ground improvement, including ground freezing in problematic soils. It is a proven solution for reducing soil permeability, controlling groundwater, and isolating contaminants.
Also HELPS

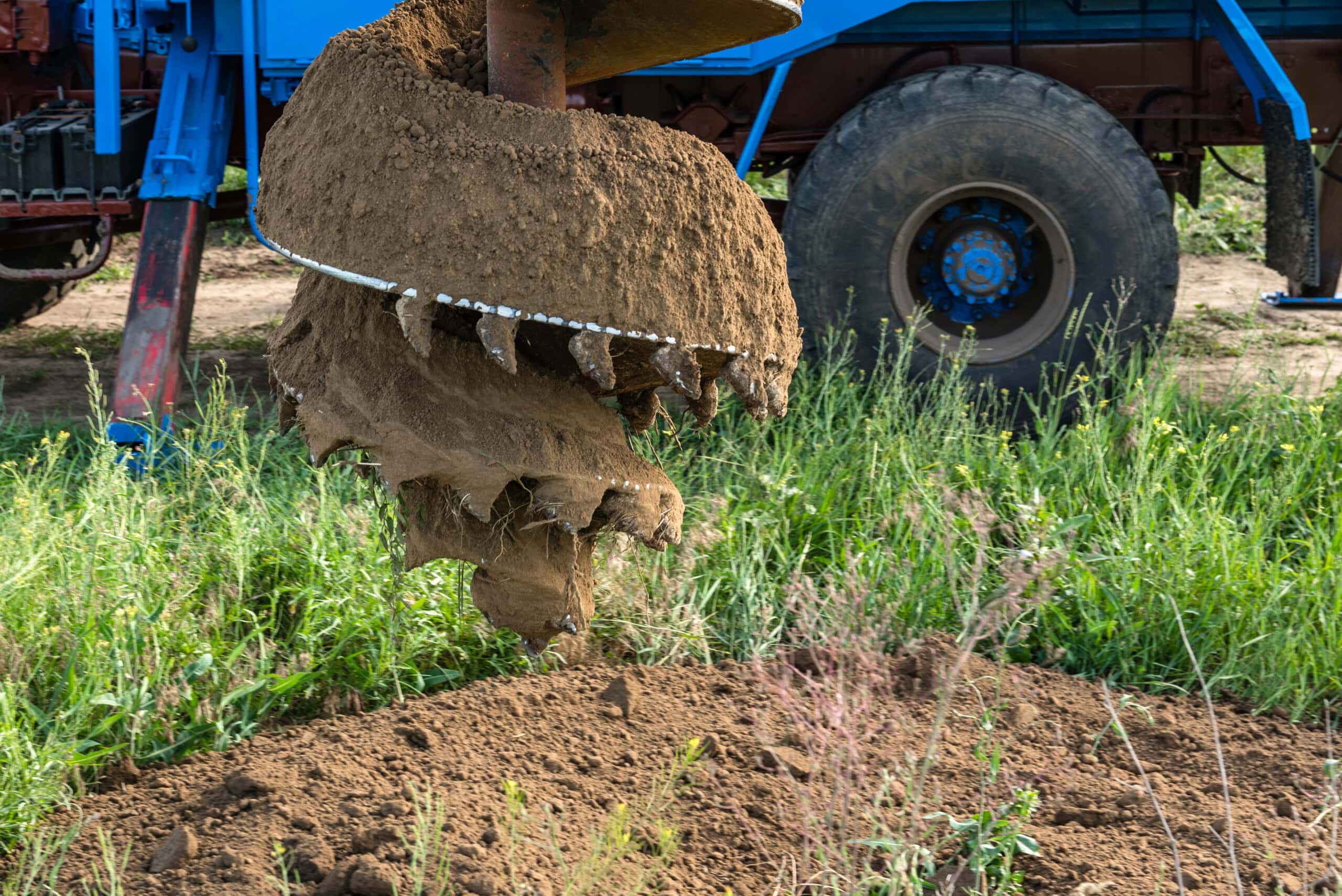

Groundworkers.
CONQOR S70 • Reduces soil permeability and controls groundwater • Improves ground stability in weak soil conditions • Isolating waste and contaminants and • Can provide ground freezing for construction or remediation.
USED by

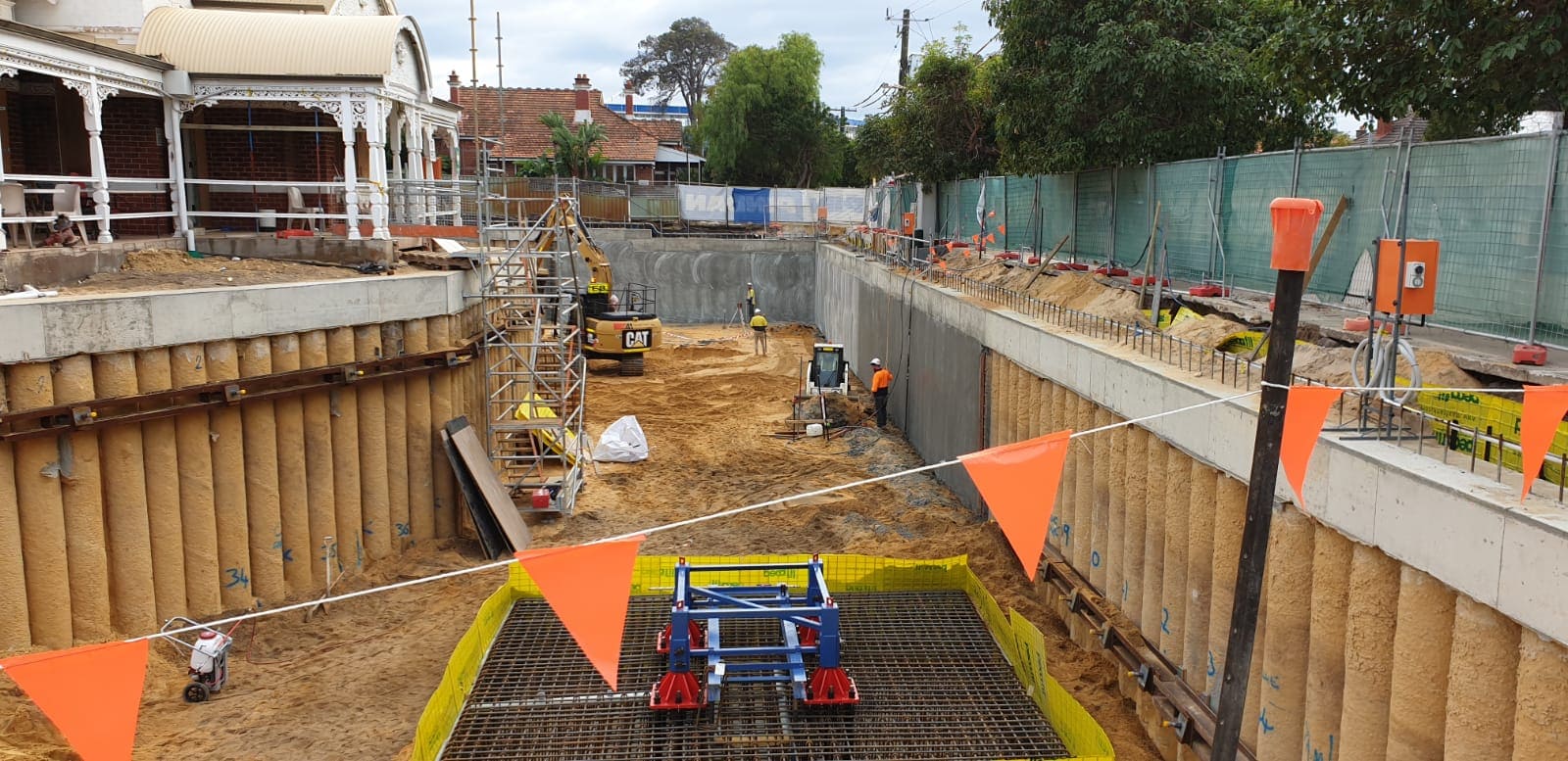

Construction teams.

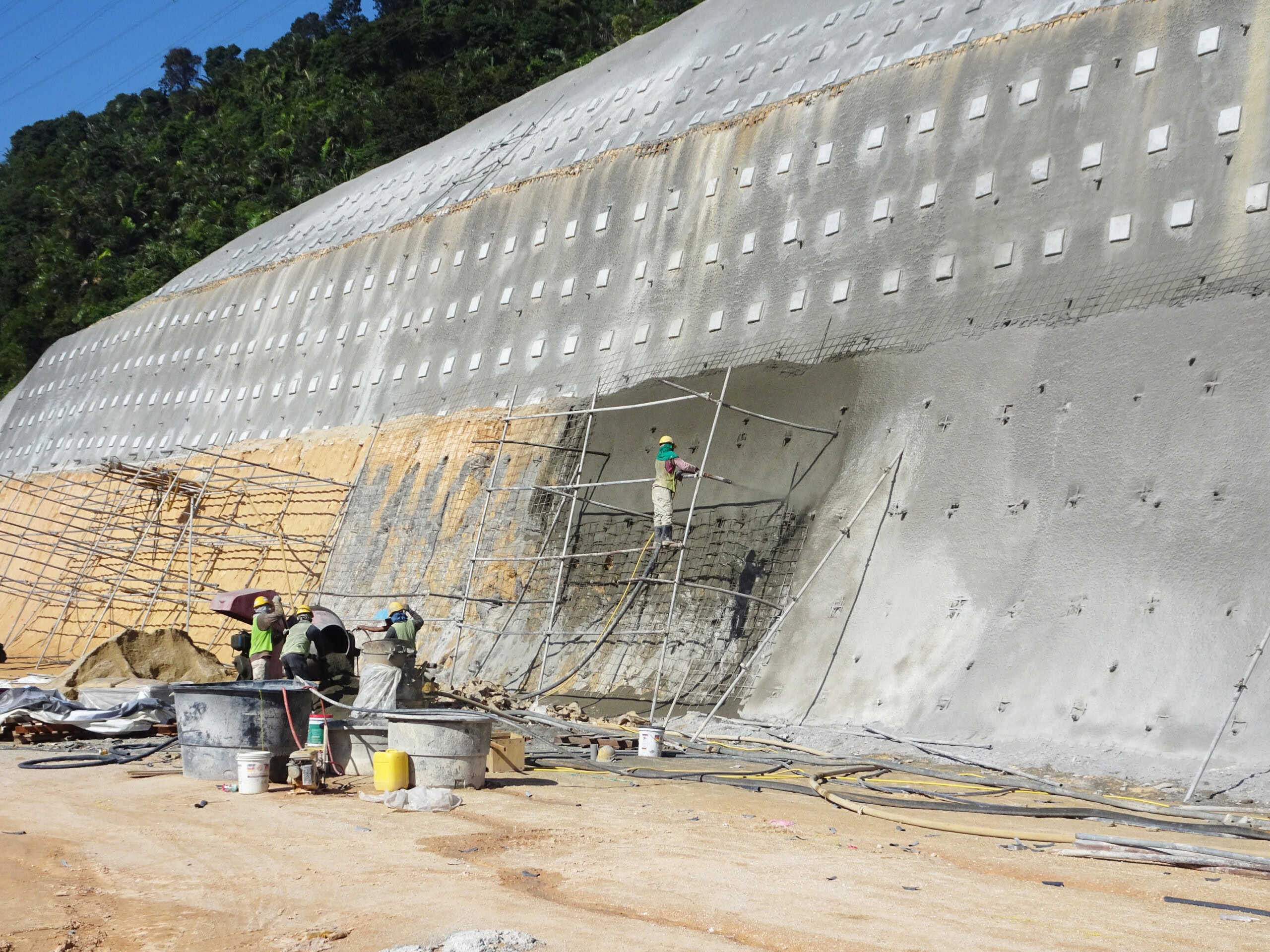

CONQOR S70 can be adapted to a wide variety of construction site needs including sheet piling, retaining walls and foundational stabilisation. Controls groundwater without damaging the underlying aquifer. Reduce project complexity; avoid environmental concerns or high-disruption installations.
works for
Property developers.
CONQOR S70 helps provide foundational stability both during construction and after completion. This gives confidence to the asset managers and owner.
CONQOR S70 | INJECTION
How it helps.
CONQOR S70 is a permeation grout designed to significantly reduce soil or sand permeability, and increase ground bearing strength.
CONQOR S70 | INJECTION
Reduce soil permeability
When mixed with its activator, CONQOR S70 undergoes a controlled gelation process, forming a resilient colloidal gel that stabilises the ground and reduces water movement. Two grades of activator are available: one polymer-modified for flexibility, and one for a harder set.
CONQOR S70 | INJECTION
Temporary or Permanent
CONQOR S70 offers either temporary or permanent ground improvement depending on the site requirements. Two grades of activator are available: one polymer-modified for flexibility, and one for a harder set.
CONQOR S70 | INJECTION
Control groundwater
CONQOR S70 is a proven solution for reducing soil permeability, controlling groundwater, and isolating contaminants.
CONQOR S70 | INJECTION
HOW IT WORKS.
CONQOR S70 is a two-component, nanosilica-based permeation grout designed to significantly reduce soil or sand permeability, and increase ground bearing strength, without harming the underlying aquifer.
MAKING CONCRETE BETTER.
CONQOR S70 | INJECTION
.
CONQOR S70 | INJECTION
Reduce soil permeability
When mixed with its activator, CONQOR S70 undergoes a controlled gelation process, forming a resilient colloidal gel that stabilises the ground and reduces water movement. Two grades of activator are available: one polymer-modified for flexibility, and one for a harder set.
CONQOR S70 | INJECTION
Temporary & permanent ground improvement
CONQOR S70 is highly effective for both temporary and permanent ground improvement, including ground freezing in problematic soils. It is a proven solution for reducing soil permeability, controlling groundwater, and isolating contaminants.
CONQOR S70 | INJECTION
No harm to any underlying aquifers
CONQOR S70 isolates contaminants and controls groundwater without damaging the underlying aquifer water.
CONQOR S70 | INJECTION
Performance data
• Typical mix ratios should range from 2:1 to 8:1 (by weight). • Workability time: 3–22 minutes (depending on ratio and temperature). • Gel point: 5–30 minutes (typical at 20°C). • Very low permeability when soil is fully saturated with gel.
CONQOR S70 | INJECTION
Verification
Verification of results can be achieved through on-site permeability measurements and pore pressure monitoring for sealing applications, or standard geotechnical tests (core sampling, SPT, seismic profiling) for
strength improvement. Note: Groundwater or soils with high salt content may accelerate setting.
Working with MARKHAM.
Each CONQOR S70 project is strictly customised. Technical support available for project-specific design and application.
CONQOR S70 is built for ground engineering consultants and permeation grouting contractors, soil stabilization contractors, people that want to improve methodology, work smarter, faster, get consistent
results and less invasive methodologies on site.
Hayden Prestidge
Sales and Marketing Manager
SUPPLY.
Supply only
MARKHAM can supply product on an ongoing basis for a particular project once correct dosage parameters have been established.
INSTALL.
Project-Specific
All CONQOR S70 projects are strictly project-specific, based on the needs of the geotechnical substrates.
WARRANTY.
End-to-end service
The MARKHAM team will typically be involved from an early stage, to develop the correct dose and approach for your particular needs.
NEED MORE
PRODUCT INFO?
Download technical data sheets, specification clauses and test reports for CONQOR S70.
Do you have a project to quote?
Send us your requirements or spec for a project quote.
